Ⅰ.Brief introduction

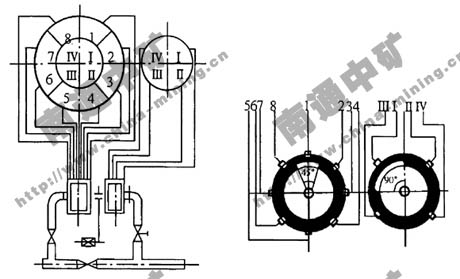

Rotary air distributor is rotated by valve core. The air from the fan will be distributed to each outlet opening in turn, while the compressed air obtained in limited time and limited amount will be conveyed to all the homogenization zones (equipped with aerating cases) via pipeline,and powder material be homogenized by circling in turn. and obtain some compressed air, then conveying to all homogenization zone(equipped with aerating case). Circle it in turn and homogenize it.
Ⅲ.Technical parameter
|
Specification
Name
|
QFFΦ500mm
Single 4-spouts
|
QFFΦ500mm
Single 8-spouts
|
QFFΦ500mm
Doubel 6-spouts
|
QFFΦ500mm
4-spouts and 6-spouts
|
|
|
Outline dimension
|
2160×950×820
|
1600×1700×910
|
2006×2165×1100
|
1630×1700×9100
|
|
|
Reduced motor
|
Cycloid pin wheel reducer
BWEY2715－1505
|
Cycloid pin wheel reducer
BWEY2715－1505
|
Cycloid pin whee l reducer
XWEY－106
|
Cycloid pin whee l reducer
BWEY2715－1505
|
|
|
Chain driving
|
Z1＝17、Z2＝68
|
Z1＝17、Z2＝68
|
Z1＝19、Z2＝66
|
Z1＝17、Z2＝68
|
|
|
Name of distributionvalve
|
4-spouts
|
8-spouts
|
6-spouts
|
4-spouts
|
8-spouts
|
|
Air inlet diameter（Φmm）
|
100
|
100
|
150
|
100
|
100
|
|
Air outlet diameter（Φmm）
|
100
|
80
|
125
|
100
|
80
|
|
Air volume（m3/min）
|
10
|
4
|
8.5
|
10
|
4
|
|
Work air pressure（MPa）
|
0.07
|
0.04
|
0.07
|
0.04
|
|
|
Speed of valve core（r/min）
|
0.25
|
0.25
|
0.288
|
0.25
|
|
|
The max. applicable pressure（Mpa）
|
0.1
|
0.1
|
0.1
|
0.1
|
|
|
Equipment for selection
|
Φ8m、Φ10m raw material homogenization silo
|
Φ8m、Φ10m cement and raw material homogenization silo
|
Φ15m、Φ18m cement homogenization silo
|
Φ8m、Φ10m mixture raw material homogenization
|
|

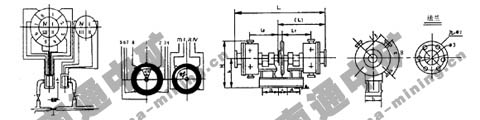

Outline dimension and foundation
